STINGER 70 TWIN with Starter

Product description:
NEW ENGINE,NEW DESIGN ,MORE POWER!Angled plug with CM6 SPARK PLUG.the gasoline engine is designed for large scale aircraft.It combines with excellent quality and reasonable price.

Description

Stinger 70cc TWIN
New Engine,More Power
Smooth operator Give your sport aircraft the low-vibration smoothness and unique sound of a horizontally opposed twin!
the gasoline engine is designed for large scale aircraft.
it combines with excellent quality and reasonable price.

Parameter

Type 2 cycle piston valve type gasoline engine for airplane
Displacement (cc) 70cc(4.27 cu.in)
Bore x Stroke (mm) 1.53 in(39mm) x 1.18 in (30mm)
Recommended props 22×10, 23×8, 23×10,24X8,24X9
Maximum Output 7.6HP/8600rpm
Power supply 7V-14V
  1. Carburetor : Walbro
  2. Ignition : Stinger DC-CDI (Computer Controlled auto advance, electronic ignition system)
  3. SPARK PLUG: NGK CM6 Type
  4. Requires: Gasoline, 2-cycle oil, ignition battery & propeller
  5. speed rang : 1500-8600rpm
  6. Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
  7. Lubrication Oil : High quality fully synthetic 2 cylinder oil such as Motul 800 2T 100% synthetic racing motro oil , Red line two-stroke racing motor oil , Stihl Ultra high performance 2 cycle fully synthetic engine oil etc .
  8. Break in Propeller : 23X10 (Standard Two leafs prop)
  9. Cooling System : Air Cooled

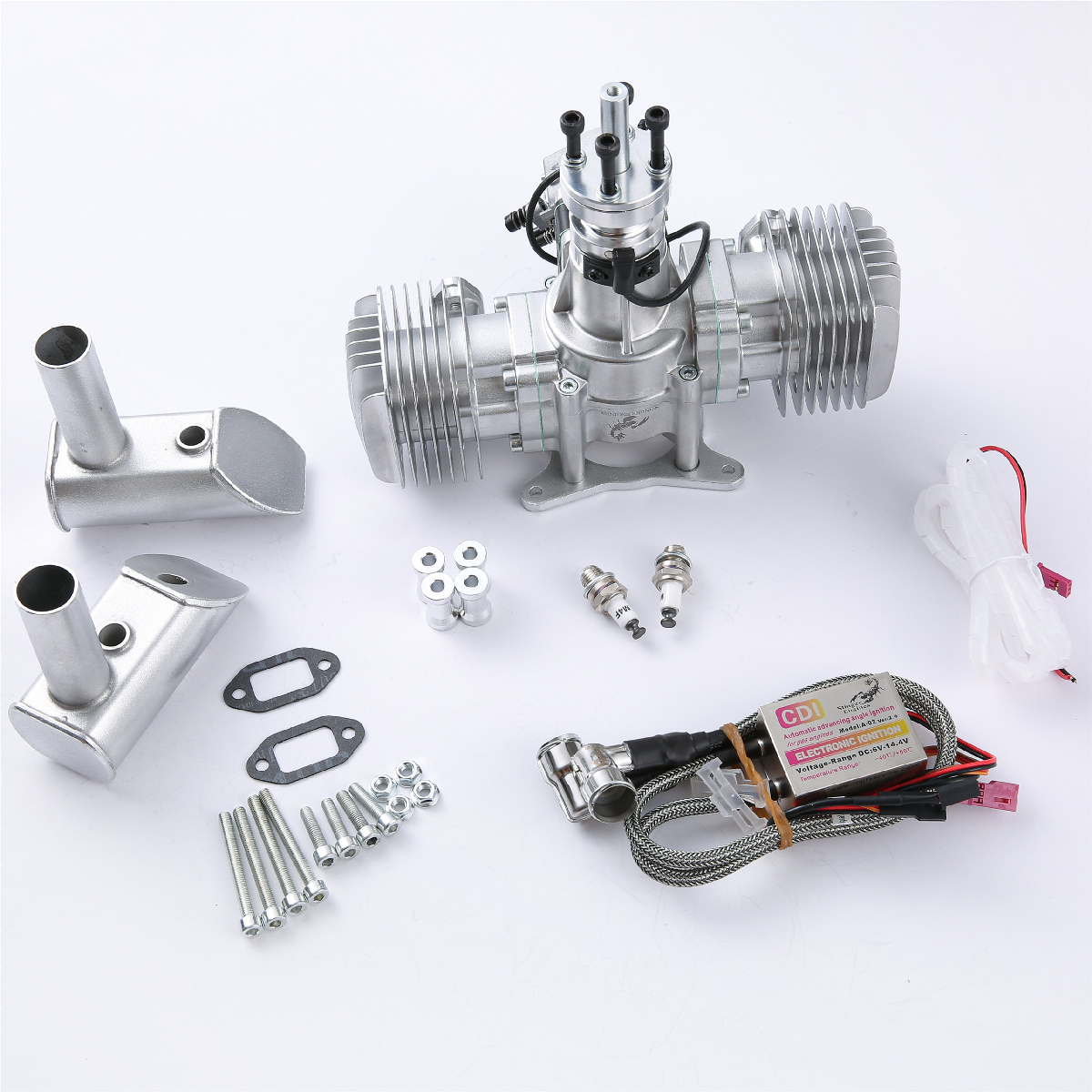

  10. RCGF Stinger Engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight:

  1. Engine: 3.32 lb (1508g)
  2. 2XMuffler: 5.36 oz (152 g)
  3. Ignition Module: 5.1 oz (145 g)
  4. Total: Weight: 3.98 lb (1805 g)

Technical Data:

  1. Ignition Battery: 7V-14VNiCd or NiMH, 7V LiFe or 2S LiPo pack ( DO NOT use BEC, iBEC or uBEC)
  2. Gasoline/Oil Mix: (recommended : 32:1 for real oil, or 40:1 for synthetic oil)
  3. Replacement Spark Plug: NGK CM6 or equivalent
  4. Idle Speed: 1600 rpm/min



Additional information

Weight 9 kg
color Silver
